| 材質 | 塑膠 |
|---|---|
| 產地 | 東莞 |
| 電機功率 | 0.84W |
| 電流 | 12V |
| 電壓 | 0.07A |
| 類型 | 直流風扇 |
| 品牌 | 翔欣 |

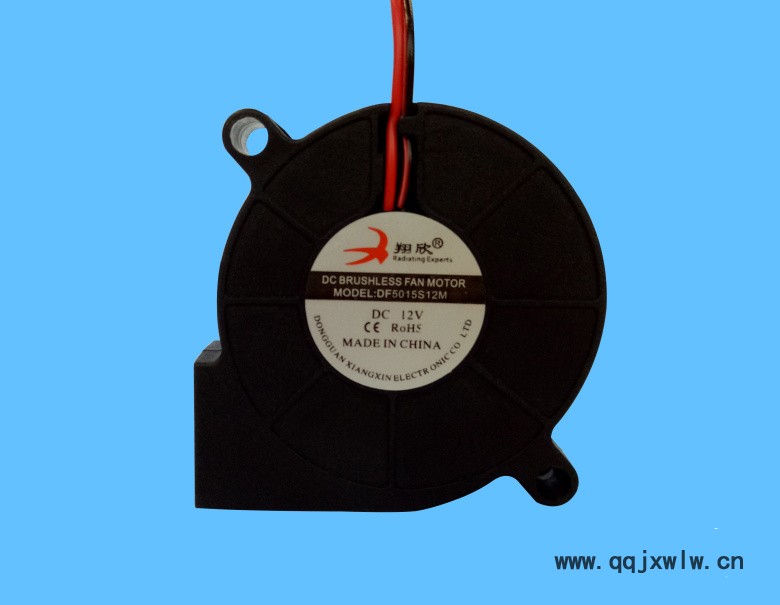

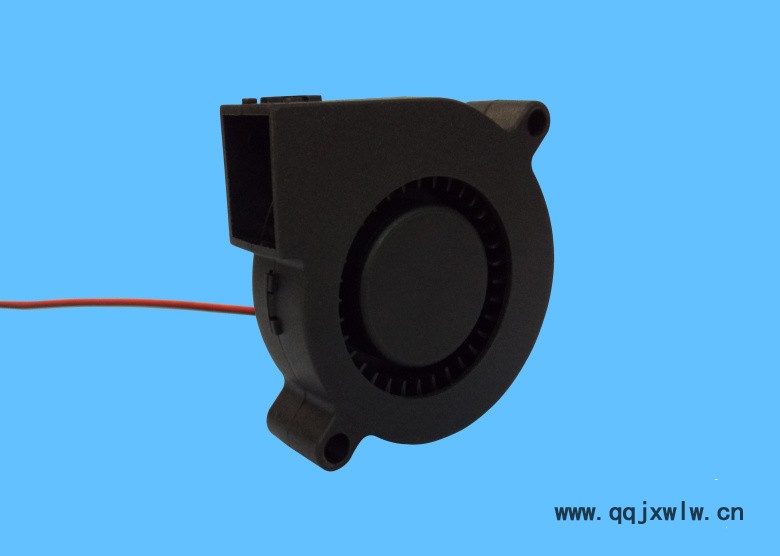

| 型號 | 5015鼓風機 |
| 加工定制 | 是 |
| 用途/使用范圍 | 加濕器 霧化器 空氣凈化器 電源 等各種散熱品牌 |
參數規格(PRODUCT SPECIFICATION)
A.一般規格(General Specification)
| 項目/ITEM | 規格.條件/Specification Condition | |||
| 01 | 型 號/ Part No. |
| ||
| 25 | 25×25×7mm | |||
| 03 | 額定電壓/ Rated Voltage | 12VDC | ||
| 04 | 啟動電壓/ Start-up Voltage | 5VDC | ||
| 05 | 操作電壓/ Operating Voltage | 5~12VDC | a.額定電壓/ Rated Voltage | |
| 06 | 額定轉速/ Rated Speed | 4500rpm | ±10% | b. 25℃ |
| 07 | 額定電流/ Rated Current | 0.05A | ±0.01A | c. 65% RH |
| 08 | 額定功率/ Rated Power | 1.8W | d. Measured after 5 Mins | |
| 09 | 最大風量/ Max Airflow | 2.2 | CFM | a.風洞測試儀/PQ Measurement Apparatus : (LW9266-SR) b.標準/Standard : AMCA c.額定電壓/Rated Voltage d.額定電流/Rated Current
|
| 0.062 | m3/min | |||
| 10 | 最大靜壓/ Max Static Pressure | 0.11 | Inch-H2O | |
| 1.16 | mm-H2O | |||
| 11 | 壽命預估/ Life Expectancy | 20000hrs at 40℃ | a.L10 at Conf. Level 90% b.額定電壓/ Rated Voltage | |
| 12 | 噪音測試/Noise Level | 12.2dB | a.額定電壓/Rated Voltage b.無響室/Non-Echo Chamber e.距離/Distance: 1.0M | |
|
| 最高耐壓/ maximum voltage | 15V | ||
| 13 | 回轉方向/ Rotating Direction | 順時針/Clockwise | ||
B.主要材料,零件規格(Main Materials, Parts Specification)
| 01 | 軸 承/Bearing | □ 雙滾珠軸承（Dual Ball Bearing） | ■ | 含油軸承（Sleeve Bearing） | |||||||
| 02 | 外框材質/frame | ■ | PBT of UL94V-0. | □ | Die-cast Aluminum Alloy | ||||||
| 03 | 扇葉材質/Impeller | ■ | PBT of UL94V-0. | □ | Steel | ||||||
| 04 | 絕緣套/Bobbin | ■PBT of UL94V-0. | |||||||||
| 05 | 導線/Lead Wire | ■ | Red(+) | ■ | Black(-) | □ | Blue（PWM） | UL 1007 26# | |||
| □ | Yellow(FG) | □ | White(RD) |
| 2 wires 200±10mm | ||||||
| 06 | 端子/Connector | 2.54正向端子2.54 positive terminals | |||||||||
| 07 | 套管/Tube | 無/No | |||||||||
C.環境測試/Environmental Specification
| 項目/ITEM | 規格.條件/Specification. Condition | ||
| 01 | 運轉溫度、濕度范圍 Operating Temp. Range | 溫度/Temperature | : -10℃~70℃ |
| 濕度/Humidity | :15%~ 90% RH (Frost Eliminated) | ||
| 02 | 保存溫度、濕度范圍 Storage Temp. Range | 溫度/Temperature | : -40℃~70℃ |
| 濕度/Humidity | :15%~ 90% RH (Frost Eliminated)
| ||
